Viofor Professional
Discover the most effective medical technology of pulsed magnetic field and LED light.
Viofor JPS System have been standing out on the medical device market for over 20 years. The leading position is the result of MedandLife Ltd. commitment to the development of physical therapy, especially in the domain of magnetic field and light energy applications. Each controller is design to perform one or combination of following types of therapies:
Pulsed Magnetic Field (ELF – MF of low induction):
LED Light Therapy and Combined Therapy (Magnetoled Therapy):

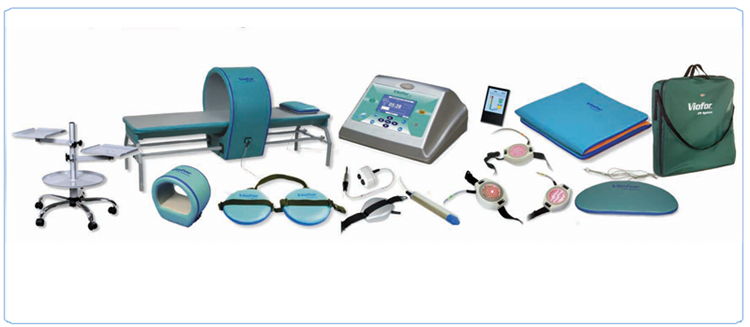

Viofor JPS Professional series compromise of 4 controllers:
Classic and Delux controllers can also be used by individual customers for home use. A wide selection of applicators enables the implementation of point treatments, on small and medium surfaces, as well as whole body treatments
Available control units:

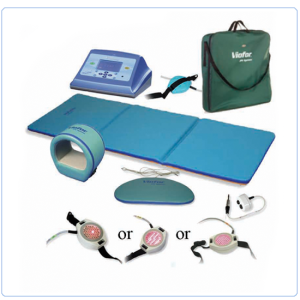

Classic – Ref. 1031
Designed for:

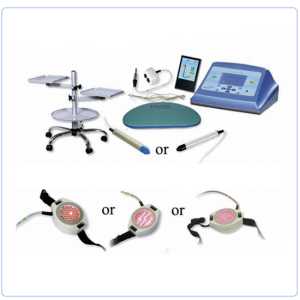

Delux – Ref. 1035
Designed for:

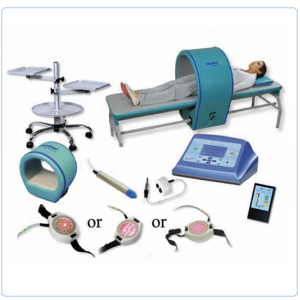

Clinic – Ref 1033
Designed for:

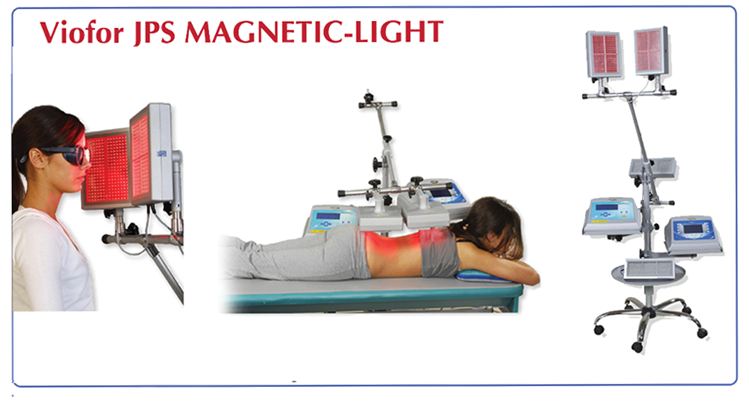

MagneticLight – Ref. 1038
Designed for:
Available applicators:
PMF – MAGNETOSTIMULATION
Each control unit needs applicator for proper functioning. You can choose many applicators for one controller and use them interchangeably. Most applicators for magnetostimulation can be used simultaneously (connected via adapter) , increasing the effectiveness of therapy.
To view detailed description of each applicator and all available equipment you can download our catalog here:
Clinical applicator – Ref 1061
The high therapeutic effectiveness of the applicator is ensured by the possibility of conducting the therapy simultaneously covering the whole body – the MDC mat applicator and locally reinforced by the FI85 ring applicator within the occurrence of ailments. The clinical applicator is the optimal option for stationary treatment.
WHOLE BODY FLAT APPLICATORS:
3S mat – Ref. 1040
Mat intended for whole-body treatments – enables comfortable treatments in a lying position. Folded into three parts. Can be combined with other pad applicators.
6S mat – Ref. 1042
Mat intended for whole-body treatments – enables comfortable treatments in a lying position. Folded into six parts. Can be combined with other pad applicators.
2S mat – Ref. 1047
The 2 S mat allows the procedure to be performed in a sitting or lying position. Foldable – designed for frequent carrying. It does not connect with other applicators.
LOCAL AREA FLAT APPLICATORS:
Intended for use e.g. on the feet, knees, back, stomach area or under the head .
Pads can be used alone or in combination with an applicator 3S or 6S mat to increase the effectiveness of therapy.
1S pad – Ref. 1045
For local use on small and medium areas – enables local treatments on all areas of the body, e.g. feet, back, knees. Dimensions
55 cm x 25 cm
2S pad – Ref. 1046
For local use on small and medium areas – allows local treatments for all areas of the body. Dimensions: 51 cm x 57 cm x 2,5 cm
RING APPLICATORS:
Ring applicators generate a pulsed homogeneous magnetic field with the lines parallel to the applicator axis and the patient’s body. Treatments performed with ring applicators can be combined with mat 3S or 6S.
Ring applicators are intended for local use: for upper and lower limbs, in the area of the head, in the area of the lumbar spine in a sitting position.
RING R300. Ref. 1099
R300 ring is the smallest ring available in our offer. Its internal diameter is 25 cm. It is mainly designed for treatment on a limb.
• outside / inside diameter: 37 cm / 25 cm
• depth – 20 cm
Ring R400 – Ref. 1098
The ring R400 is designed for treating limb or head area (eg. In dentistry), and cervical spine. Its internal diameter is 39 cm.
• outside / inside diameter: 49 cm / 39 cm
• depth 24 cm
Ring R500 – Ref. 1121
The ring R500 intended for treatment in the region of
the lumbar spine while seated or around limb. It’s internal diameter is 44 cm.
• outside / inside diameter: 58 cm / 44 cm
• depth 30 cm
SMALL BODY AREA APPLICATORS
Designed to perform treatment on focal body area.
MS Ellipse Ref. 1054
Generates a low-frequency pulsed magnetic field. It is intended for local application to small areas of the body (small and medium-sized joints, dental cases). It is possible to attach the applicator to a limb with a strap.
Point Applicator S – Ref. 1056
The point applicator S generates a low-frequency pulsed magnetic field. It enables targeted interaction in cases where it is required to use a narrow magnetic field beam with significant induction.
Point applicator Z – Ref 1057
Generates a low-frequency pulsed magnetic field 10 times stronger than S point applicator. Enables targeted interaction in cases where it is required to use a narrow magnetic field beam with significant induction.
LED APPLICATORS FOR SYNCHRONOUS MAGNETOLED THERAPY CONTROL UNITS: DELUX, CLINIC, MAGNETICLIGHT)
Magnetic-light applicators are used to perform pulsed magnetic field led therapy treatments
of small and medium surfaces. The panel applicator can be mounted on a table stand and
the elliptical applicators can be fixed with straps.
ELLIPSE LED IR (855 nm)- ref. 1066
(REF. 1066) The application area is evenly exposed to infrared radiation (wavelength 855 nm), with simultaneous exposure to low induction magnetic field. Thanks to
this, the applicator acts both shallow and deep on the treated tissues. The area of application is about 20 cm2 (circle with a diameter of about 5 cm).
ELLIPSE LED R (630 nm) – ref. 1043
The application area is evenly exposed to red light (wavelength 630 nm), while the magnetic field of low induction is applied. Thanks to that, the applicator affects both shallow and deep tissues subjected to the treatment. The area of application is about 20 cm2 (circle with a diameter of about 5 cm).
ELLIPSE LED R+IR – ref. 1044
The application surface is approx. 20 cm2 (circle with a diameter of approx. 5 cm). The area of application is evenly exposed to red light (wavelength 630 nm) and infrared radiation (wavelength 855 nm) with simultaneous interaction of low induction magnetic field. The applicator has both a shallow and deep effect on the treated tissue.
PANEL LED R+IR (630 nm/ 855 nm) REF. 1097
The application surface is 280 cm2. The application area is evenly exposed to red light wavelength 630 nm), infrared radiation (wavelength 855 nm) and low induction magnetic field. The applicator has both a shallow and deep effect on the treated tissue.
MAGNETIC-LED APPLICATORS FOR MAGNETICLIGHT CONTROL UNIT
Compatible with MagneticLight control unit for synchronous or asynchronous therapy.
PANEL LED IR (855 nm) – ref. 1084
Application surface – 560 cm2. Light interaction – 855 nm (IR) up to several cm deep. Dual panel applicator consists of sections connected with each other by a cable, each of which is equipped with a set of high-energy LEDs emitting pulsed LED radiation and a module generating heterogeneous magnetic field in the JPS System. The applicator is designed to be fixed on a stand (Light stand Ref. 1087), it ensures any position of the applicator over the surface of the treatment.
PANEL LED R (630nm) – ref.1080
Application surface – 560 cm2. Light interaction – 630 nm (R) up to several mm deep. Dual panel applicator consists of sections connected with each other by a cable, each of which is equipped with a set of high-energy LEDs emitting pulsed LED radiation and a module generating heterogeneous magnetic field in the JPS System. The applicator is designed to be fixed on a stand (Light stand Ref. 1087), it ensures any position of the applicator over the surface of the treatment.
PANEL LED R+IR (855 nm + 630nm) – ref.1081
Application surface – 560 cm2. Light interaction – 630 nm (R) up to several mm deep, 855 nm (IR) up to several cm deep. Dual panel applicator consists of sections connected with each other by a cable, each of which is equipped with a set of high-energy LEDs emitting pulsed LED radiation and a module generating heterogeneous magnetic field in the JPS System. The applicator is designed to be fixed on a stand (Light stand Ref. 1087), it ensures any position of the applicator over the surface of the treatment.
To request price and for advise in choosing your equipment
Contact us by phone @ +353 (0) 91 396337 or email: info@vioforbiomed.com
Applicators
General information about the magnetic field applicators
In the applicators of Viofor JPS System the source of the magnetic field is formed in an electrical conductor coils. Med & Life produces heterogeneous field flat applicators and homogeneous field ring applicators. Induction of magnetic field generated by the coils is dependent on the dimensions of the coil, the number of turns and the electrical current flowing through the coil.
Flat applicators produce heterogeneous magnetic field, which means that induction measured at different locations on the surface of the applicator and under the applicator may have different values. With the distance from the surface of the applicator induction decreases, which limits the effective range of the magnetic field.
Increasing the “saturation”magnetic field can be achieved by the simulataneous use of two flat applicators.
Homogeneous field applicators, such as ring applicators are made of coils properly completed and placed in space to each other. They produce homogeneous field in the large space inside the applicator. This means that the homogeneity of the field has the same value of the induction, the same direction and sense in a given instant of time. The location of the body in the uniformity is ensured by the desing of applicators. A characteristic feature of the applicator is the generation of magnetic field with its lines of force parallel to the axis of the applicator and the patient`s body (in the flat applicators lines pass perpendicularly trough the body).
Choice of applicators
The values of magnetic field induction is related to the distance from applicator surface. It could be said that the larger applicator, the deeper magnetic field insertion.
When you need deep insertion, you should
- choose large area applicator
- use two flat applicators connected by adaptor
- or use a ring applicator
Applicator combining (usage of two applicators)
The aim of the combination is to increase the efficiency of the therapy.
General principle for applicator combining
- combining applicators applies to selected magnetic stimulation applicator
- connection can be done only with the original adaptor changes the parameters of treatment
- for the optimum effect of the combining the applicators should be positioned parallel to each other and the surfaces contact with the body should have different colours
Indications
Indications Pulsed magnetic Field Stimulation
Analgesic action
1.Osteoarticular system
– spondyliosis of the spine and osteoarticular system of the upper and lower limbs
– rheumatoid arthritis (RA)
– ankylosing spondylitis
– joint injuries.
2. Soft tissue:
– extra articular rheumatism ( so-called fibromyalgia)
– soft tissue injuries
– conditions after injury(interruption)to the continuity of tissue (including post-surgical).
3. migraines
Regenerative action
1. bone structure
– osteoporosis, particularly post-menopausal (concerns prophylaxis as well as therapy)
– conditions after bone crack and fracture
– conditions after operations on bone structure
– pseudoarthrosis
2. soft tissues:
– conditions after injury with or without damage to skin continuity
– burns
– bedsores
Improving peripheral circulation activity
1. improper local (topical) blood flow in the limbs:
– in diabetic angiopathy
– in atherosclerotic angiopathy
– in crural ulceration
2. accelerated absorption of haematomas
Antispastic activity
– conditions after apoplexy
– degenerative diseases of the nervous system, accompanied by spasticity
Relaxative activity
– neuroses
– sleep disorders
– stress, particularly after long-term psychic/mental tension
– concentration disorders
Pulsed Magnetic Field Stimulation in dentistry-regenerative and analgesic activity.
-periapical lesions – conservative treatment of periapical tissue inflamations
-nerve damage,complications after anaestesia
– complications after dental surgery
– complication after endodonic treatment
– dry socket as orthodontic treatment adjuvant
Contraindications to Pulsed magnetic Field Stimulation
– pregnancy
– neoplastic disease
– tuberculosis
– hyperthyroidism
– bleeding from the alimentary tract
– sever infections of a viral, bacterial
and mycotic origin
– electronic implants
– conditions after organ transplants
Side effects Pulsed Magnetic Stimulation, adverse effect
Until now, no serious side effects of magnetic field simulation have been reported. The following effects might occur temporarily:
– a tingling, numbing and warmth sensation, may occur particulary in the first three or four days of exposure; this applies in particular to post-traumatic areas of the osteoarticular system,
– sleep disorders are observed only in aprox. 3% of elderly patients,
– irritation and/or concentration disorders, temporary intensification of pain are chiefly experienced by women during menopause as well as people with increased tension of the neurovegetative system; these symptoms are usually observed in the first days following exposure.Such symptoms affect approx. 4% of women and 1% of men.
– A temporary intensification of pain usually occurs in the first period of exposure and affect people with significant degenerative changes in the osteoarticular system.
Operations
Viofor JPS generates variable magnetic fields, which cause changes in the organism similar to those caused by physical activity (physical strain, physical activity); i.e. they support biological regeneration. Both mental and physical regeneration is tightly connected with physical exercise. Variable magnetic field plays a similar beneficial role.
Magnetostimulation stimulates in the organism electromotor forces of such properties, which enable homeostasis, and in case of its disturbance stimulate return to a normal state.
Biological effect of variable magnetic field generated by Viofor JPS is the result of:
- electrodymanic effect on ion currents in the body
- magnetomechanic effect of the magnetic field on particles with uncompensated magnetic spin
- ionic cyclotron resonance of cations and anions in the body fluids
Body fluids i.e. blood, the lymph and intercellular fluid constitute so-called second mode conductors of the ionic character of electrical conductivity. The essence of the Viofor JPS system is the optimal choice of two different electrical (and thus magnetic) signals as well as their mutual combination, in order to achieve the aforementioned three fundamental mechanisms of variable magnetic field absorption by the living matter.
ELF (Extremely Low Frequency) electromagnetic radiation may affect an organism in various ways.
In magnetostimulation, due to extremely low value of magnetic induction, the most important are bio-electric, biochemical and bioenergetic effect
- The bioelectric effect causes normalization in the potential of the cell membrane. In pathological cases, the potential drops due to penetration through the cell membrane to the cell interior of positive ions, e.g. Na+. In order to reverse the process, the cell needs energy, which can be obtained from ATP hydrolysis. .
- The biochemical effect is based on an increased enzymatic activity as well as reduced processes related with ATP. .
- The bioenergetic effect is a factor that stimulates the nutrition and growth of cells and regulates intercellular processes leading to regeneration of the organism..
Biological Effects
Main effects of biological magnetostimulation mechanisms:
Analgesic effect
Analgesic action takes place mainly due to an increase in the secretion of endogenous opiates from the ß-endorphin group, a substance responsible for the increase in pain threshold. The effect of analgesic action occurs not only during exposure to magnetic fields, but is also observed after exposure is discontinued. This determines the biological hysteresis of magnetic field effect. Precisely such a mechanism of analgesic action on the internal opioid system confirms an antagonist of opiates blocking this effect (Naloxone).
Regenerative effect
An intensification of the processes of oxygen utilization and tissue respiration as a result of intensified diffusion as well as oxygen capture by hemoglobin and cytochrome chiefly determines the basis of regenerative effects. The increased capture of oxygen is associated with a stimulation of the processes of tissue respiration, DNA synthesis and acceleration of the mitotic cycle. As a result, magnetic fields treat trophic lesions of the shank, accelerate the healing of ulcerous niches, improve the cellular metabolism of the central nervous system and accelerate regeneration of damaged peripheral nerves.
Vasodilatatory
Very weak currents generated due to interaction on piezoelectric substances e.g. collagen, stimulate the activity of osteoblasts. It is aided by intensification of vasodilatatory effects. It has also been observed that a magnetic field inhibits demineralization processes of the bones and, at the same time, increases their mineralization – which is evaluated by densitometry.
Anti-inflammatory
Anti-inflammatory action is connected with the stimulation of formation of c-AMP and E prostaglandin. Prostaglandin influences the accumulation of c-AMP, which decreases the secretion of inflammation mediators from neutrophiles, basophiles, mastocytes and lymphocytes.
Relaxing and antispastic effect on the nervous system
In case of the nervous system, magnetic fields also improve the interneuron conductivity and modulation of neuron activity as well as the pineal gland’s twenty-four hour rhythms of melatonin secretion, which is called” the scavenger of free radicals” responsible, among others, for the aging process. The pulsating magnetic fields generated by the Viofor JPS clearly modify the amplitude value of alpha and theta wave rhythms in proper directions, characteristic for the physiological state of relaxation – objectively measurable and indicated by value of the demobilization of the autonomous system. The results of psychophysical testing, as a part of psychotherapy of emotionally immature people point to Viofortherapy as a method of choice for these people. What is more, it is a non-invasive method applied equally in medicine as in psychology.
Viofor JPS system magnetostimulation has a documented analgesic, anti-inflammatory, antispastic, regenerative effect; it also improves blood circulation. Magnetostimulation is particularly recommended to treat pain of various origin, motor system diseases or neurological diseases. It is very effective in posttraumatic, post-burn and neurological rehabilitation.
In many cases it allows reducing the drug intake, painkillers in particular
Application Methods
Treatment time: default settings 8, 10 or 12 minutes
Treatment can be provided to patients in any position (lying or sitting). It does not need any special preparations. The application is automatic and there is no need to involve third parties.
Application parameters
Each treatment session includes the following parameters: Program (P), application mode (M) and intensity / level (I).
There are three groups of indication: prophylaxis, medical treatment and rehabilitation..
Prophylactic treatments should be applied two times a day. They provide comfortable and relaxing sessions. Two applicators can be used for prophylactic treatment: large flat applicator – mat and cot
Treatment and rehabilitation
Application parameters can be set according to the disease, patient’s age and general condition as well as treatment length. A wide choice of accessories allows general and local application. Large applicators (mat and cot) are used for the whole body treatment. Local applicators are used for selected body part treatment. They provide non-invasive and pain free treatment that patients can apply on their own.
For children, parameters are set according to age groups.
Kinds of Therapies
- Pulsed Magnetic Field Stimulation (PMF Simulation) in the JPS System
For Pulsed Magnetic Field Stimulation purposes, Viofor JPS System generates pulsed electromagnetic field using complex shape pulses with multi-peak structure, resulting in multiple signals across a frequency spectrum.
The shape of the signal:
the two types of the saw-like shape of impulse.
The frequencies are present by the manufacturer.
The Magnetic signal consist of:
- the basic frequencies range: 180-195 Hz
- the frequencies of the impulse packets range: 12,5-29 Hz,
- the packet groups range: 2,8-7,6 Hz
- the series range:0,08-0,3 Hz
Magnetic induction depends on the selected applicator as well as functional setting.
The average magnetic induction values are far lower than those used in Pulsed Magnetic Field Therapy, for most Viofor JPS applicators up to 100 µT.
Duration of the treatment is present by the manufacturer when the desired functional setting is selected. Total duration of the treatment last 8 minutes, 10 minutes or 12 minutes.
- Pulsed Magnetic Field Therapy
Frequency: 5-40 Hz, in 5 Hz step
Magnetic induction: 0,19 – 6,00 µT (set by the intensity level in the range of 0,5 – 12)
Duration of the treatment: 10- 30 min, in 5 min step
The shape of the signal: sinusoidal, triangular, rectangular
- LED Therapy
LED Therapy is a form of phototherapy which entails the use of energy of unpolarized and incoherent light in the visible red and infrared light generated by high-energy LEDs.
Maximum radiation power: from 400 m W to 6800 mW, depends on the applicator.
Average radiation power: from 1mW, or 10% maximum radiation power to full maximum radiation power, depends on the control unit.
Radiation frequency:181.8 Hz (optical radiation is emitted at a constant frequency of 181.8 Hz, which is one of the main frequencies of Pulsed Magnetic Field Stimulation in the JPS System).
Duration of the treatment:1-30 min.
- Pulsed Magnetic Field LED Therapy
Pulsed Magnetic Field LED Therapy means using of Viofor JPS Pulsed Magnetic Field Stimulation and LED Therapy at the same time.
Pulsed magnetic Field LED Therapy in Viofor JPS System uses red and infrared optical radiation with parameters like in low-energy laser therapy.
Synchronous Pulsed Magnetic Field LED Therapy
– impulses of magnetic field and LED radiation are synchronized.
Asynchronous Pulsed Magnetic Field LED Therapy
– impulses of magnetic field and LED radiation are not synchronized.
Maximum radiation power: from 400 mW to 6800 mW, Depends on the selected applicator.
Average radiation power: depending on the selected control unit from a hew mW (Clinic,Delux) or from 10% maximum radiation power to maximum radiation power (Light,MagneticLight)
Radiation frequency:181.8 Hz (optical radiation is emitted at a constant frequency of 181.8 Hz, wich is one of the main frequencies of pulsed magnetic field stimulation in the JPS System.
Duration of the treatment: 8 min, 10 min, 12 min or x2,x 3, depends on selected control unit.
The shape of the signal: Pulsed magnetic Field Stimulation with the two types of the saw-like shape of impulse.
- Laser Therapy
Laser Therapy is a kind of light therapy which uses energy of coherent and monochromatic laser radiation in red and infrared radiation range, generated by semiconductor laser.
Dose (density) of radiation energy:1-99 J/cm2
Radiation frequency: 181.8 Hz (optical radiation is emitted at a caostant frequency of 181.8 Hz, which is one of the main frequencies of pulsed magnetic field stimulation in the JPS System).
Maximum radiation power: 30 mW for red radiation and 300 mW for infrared radiation.
Average radiation power: from 1mW up to full maximum radiation power, deprnds on the applicator ( continuous mode).
Duration of the treatment: 10-30 min in 10 sec step.
- Pulsed Magnetic Field Laser Therapy
Pulsed Magnetic Field Laser Therapy usage of Pulsed Magnetic Field Stimulation and Laser Therapy in the same time.
Pulsed Magnetic Field Laser Therapy in Viofor JPS System uses red and infrared laser radiation with low energy parameters.
Impulses of pulsed magnetic field and laser radiation are not synchronized.
Dose (denisty)of radiation energy: 1-99 J/cm2.
Radiation frequency: 181.8 Hz (optical radiation is emited at a constant frequency of 181.8 Hz, which is one of the main frequency of Pulsed Magnetic Field Stimulation in the JPS System).
Maximum radiation power:30 mW for red radiation and 300 mW for infrared radiation.
Average radiation power: from 1 mW, up to full maximum radiation radiation power, depends on the applicator (continous mode).
The shape of the signal: Pulsed Magnetic Field Stimulation with the two types of the saw-like shape of impulse.
Duration of the treatment:
- separately sets for laser radiation – from 1 min to 10 min in 10 sec step
- separately sets for pulsed magnetic field 8 min, 10 min, 12 min.
- PhotoDynamic Therapy (PDT)
The basis of PDT is the joint action of the photosensitizer, oxygen and light of an appropriate wavelength that is selectively absorbed by the photosensitizer.The result is a photodynamic action which enables the selective destruction of pathological tissue or the inferected area.
S PDT Viofor System allows completion of the procedure of the PhotoDynamic Therapy (PDT) in providing appropriate radiation dose for the treatment of a change qualified to the PhotoDynamic Therapy.
The LED Therapy Spot Applicator can be used to PDT (PhotoDynamic Therapy) ensuring a correct dosage of light energy for photosensitizers with a wavelength of 632 nm.
The PDT terapist decides what indications and energy dose and which photosensitizer should be used when carrying out the procedure.
The equipment can be used for PDT that does not involve contact with the skin: the vulva,the male external genitals and oral mucosa.In recent years there has been a discernible rise in the use of PDT for the treatment of inflamatory states e.g.: acne vulgaris, curural ulcers, diabetic foot, syndrome nad inflammation of the external genitals.
The equipmant meets the technical criteria necessary for treatments accessible for non-endoscopic and non-contact application.
Authorised Viofor Parner
Registered in Ireland
CRO: 715326
